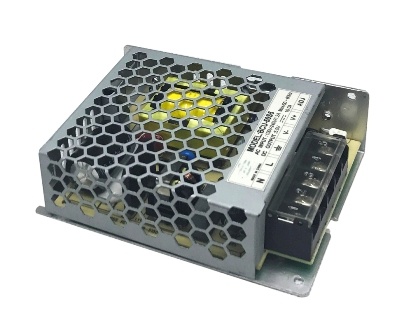

BCU-50S Series
● Universal AC Input:90~264VAC/100~370VDC, high efficient, low standby consumption ≤0.3W
● According with Safety-Standard design
● Small Size,compact construction
● Very wide working temperature (-25℃~
● Protection:Overload/Short/Over voltage
● All capacitor used high working temperature
● 2 year warranty
■SPEC
Model
BCU-50S5
BCU-50S12
BCU-50S24
BCU-50S48
Output
Output Voltage
5V
12V
24V
48V
Rated Current(convention)
0~8A
0~4.2A
0~2.1A
1.05A
Rated Output Power
40W
50.4W
50.4W
50.4W
Ripple & Noise 0~70℃(2)
<50 mV
<80 mV
<120 mV
240mV
Ripple & Noise -25℃
<80 mV
<120 mV
<240 mV
<480 mV
DC adjustment range
±5.0%
±5.0%
±5.0%
±5.0%
Output Voltage Tolerence
±2.0%
±1.0%
±1.0%
±1.0%
Setup time
≤1S (230Vac input, Full load)
Hold up time
≥25mS(230Vac input, Full load)
Output Inrush
<5.0%
Dynamic
10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p
Input
Input Voltage range
90Vac~264Vac,100~370Vdc
Rated Input Voltage
100Vac~240Vac / 47Hz~63Hz
Start-up Voltage
90Vac
No load consumption
0.3W
Efficient (Type)
80%
84%
86%
87%
Input Current(Max)
<1.8A
Start-up Inrush Current
<40A@264Vac Cold start
