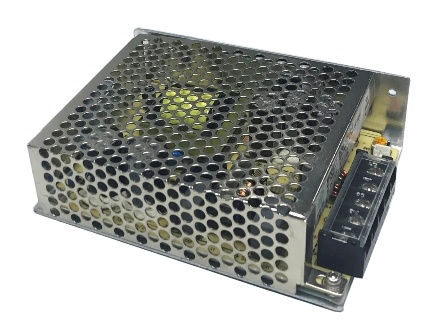

BCH-100S Series
■Feature
● AC Input:176~264VAC
● According with Safety-Standard design
● Small Size，compact construction
● Very wide working temperature (-25℃~
● Protection:Overload/Short/Over voltage
● All capacitor used high working temperature
● 2 year warranty
■SPEC
| Model | BCH-100S5 | BCH-100S12 | BCH-100S24 | BCH-100S48 | ||
| Output | Output Voltage | 5V | 12V | 24V | 48V | |
| Setting Voltage（10%load） | 5.0~5.1V | 12.0~12.1V | 24.0~24.1V | 48.0~48.1V | ||
| Rated Current(convention) | 0~15.0A | 0~8.4A | 0~4.2A | 0~2.1A | ||
| Rated Output Power | 75W | 100.8W | 100.8W | 100.8W | ||
| Ripple & Noise 0~70℃(2) | <80 mV | <120 mV | 150mV | 240mV | ||
| DC adjustment range | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ||
| Output Voltage Tolerence | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| Setup time | ≤1S (230Vac input, Full load) | |||||
| Hold up time | ≥25mS(230Vac input, Full load) | |||||
| Output Inrush | <5.0% | |||||
| Dynamic | 10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p | |||||
| Input | Input Voltage range | 176～264Vac | ||||
| Rated Input Voltage | 200Vac~240Vac , 47Hz~63Hz | |||||
| Start-up Voltage | 170Vac | |||||
| No load consumption | / | |||||
| Efficient (Type) | 80% | 85% | 87% | 88% | ||
| Input Current(Max) | <2.0A@220Vac, <4.0A@110Vac, | |||||
| Start-up Inrush Current | <40A@264Vac Cold start | |||||
