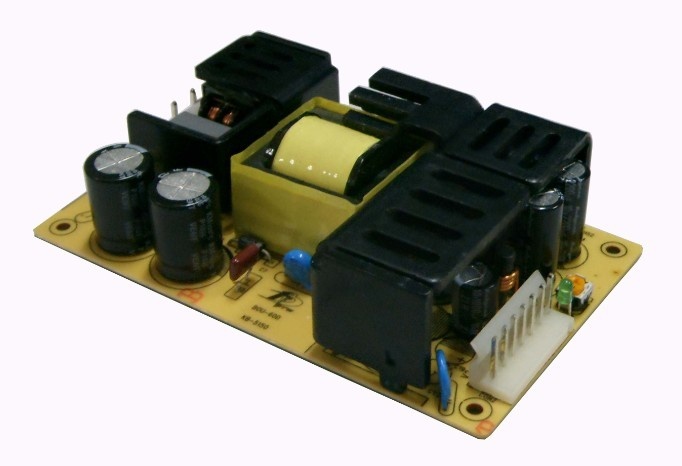

BOF-125S Series

BOF-125S Series

BOF-125S Series


  • Product No.: BOF-125S
  • Dimension: 127*76.2*30.5mm(3*5

Details

 ■ Feature

Universal AC  Input85~265VAC/100~370VDC, Active PFC,PF>0.96@230Vac>0.98@115Vac

Small Size,3*5”,compact construction

Very wide working temperature (-25℃~70)

● Protection:Overload/Short/Over voltage

LED indicator,output voltage adjusted ,Built-in remote sense

All capacitor used high working temperature 105 & long life time type

2 year warranty

SPEC

Model   BOF-125S5 BOF-125S12 BOF-125S15 BOF-125S24 BOF-125S27 BOF-125S48 BOF-125S140
Output Output Voltage 5V 12V 15V 24V 27V 48V 140V
Rated Current(convention) 0~20A 0~8.5A 0~6.7A 0~4.2A 0~3.8A 0~2.1A 0~1.0A
Rated Current(18CFM) 0~25A 0~10.5A 0~8.4A 0~5.2A 0~4.6A 0~2.6A /
Ripple & Noise 0~70℃ 80mV 100mV 100mV 150mV 150mV 250mV 250mV
DC adjustment range -5% ~ +10% of rated output voltage
Output Voltage Tolerence ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Setup time ≤1S (230Vac input, Full load)
Hold up time ≥20mS(230Vac input, Full load)
Input Input Voltage range 90Vac~264Vac
Rated Input Voltage 100Vac~240Vac
PF >0.96 230Vac Full Load; >0.98 115Vac  Full Load
Efficient (Type) 85% 87% 87% 88% 88% 88% 90%
Start-up Inrush Current <20A@115Vac  <40A@230Vac Cold start
